  1. Quick Guides: Akamas in a sandbox
  2. [AIAS-03] Guide: Create a study to optimize K8s microservices costs using the Akamas CLI

[AIAS-03] Create the Workflow

Previous[AIAS-03] Create the systemNext[AIAS-03] Create the Study

Last updated 10 months ago

Was this helpful?

The next step is to create a workflow describing the steps executed in each experiment of your optimization study.

A workflow in an optimization study for Kubernetes is typically composed of the following tasks:

  • Update the Kubernetes deployment file of the Kubernetes workloads with the new values of the selected optimization parameters (e.g. CPU and memory requests and limits), using the FileConfigurator operator.

  • Apply the new deployment files via kubectl. This triggers a rollout of the new deployment in Kubernetes.

  • Wait until the rollout is complete.

  • Run the performance test.

To create the workflow, launch the following command:

akamas create workflow kubernetes-online-boutique/akamas/workflows/workflow-aias.yaml

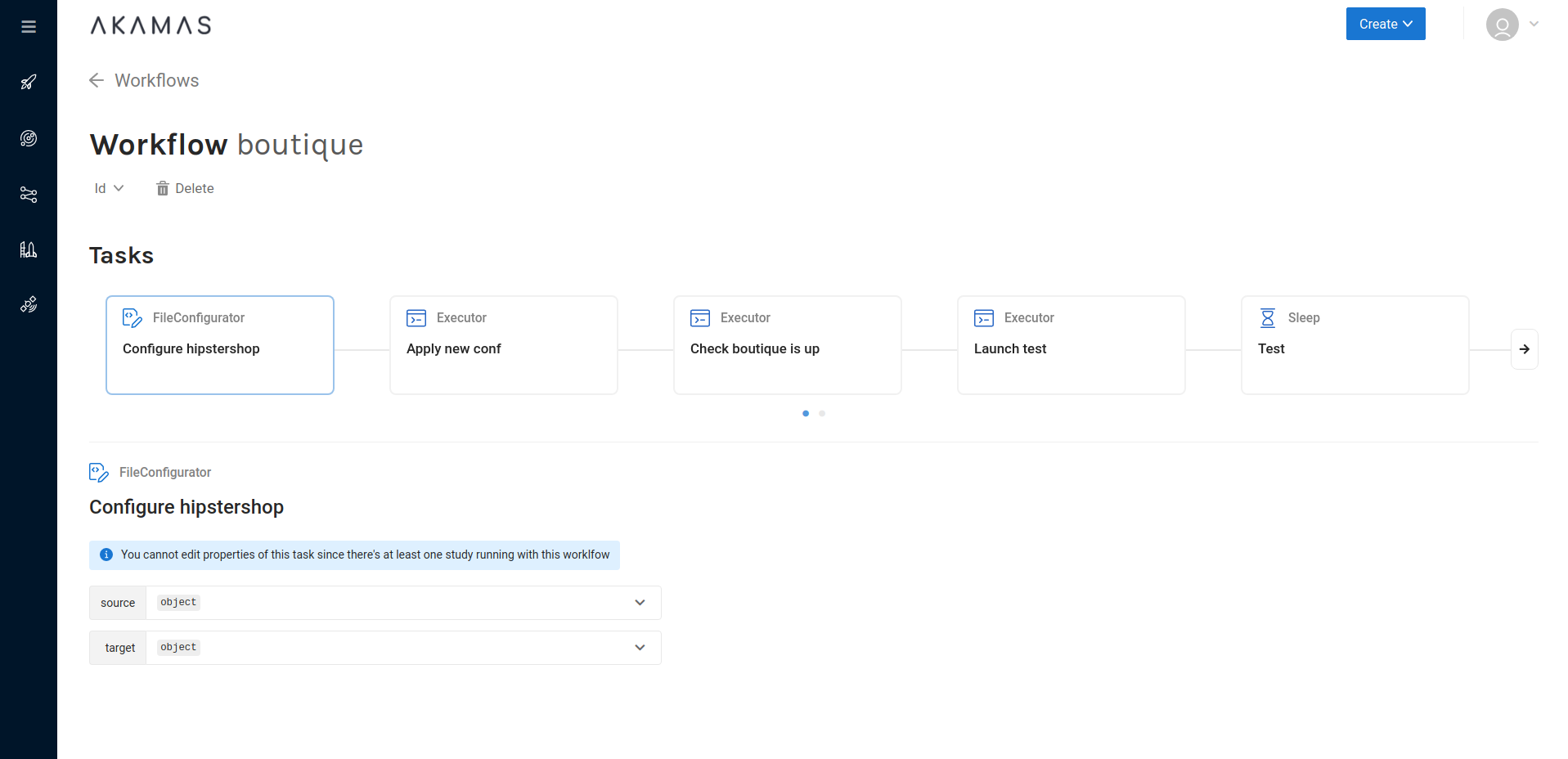

You can verify that this workflow has been created by accessing the "boutique" workflow in the Workflow menu:

All scripts and templates used in the steps of this workflow are available in the kubernetes-online-boutique/workflow-artifacts folder.
